If you are new to photography, you may be confused by the many numbers, characters, and symbols on your camera lens. Initially, they may appear to be difficult to comprehend, but once explained, they are actually rather simple. In this post, I, Photojournalist Mohit Bansal Chandigarh, provide a few samples of typical lenses and explain some of the most crucial numbers and characters that appear on your lens.

What Does A Camera Lens Do

A lens for a digital camera has only two simple purposes. It must let the appropriate quantity of light into the camera and concentrate the light onto the sensor. Simple-sounding, right? One or more lens elements move forward or backward till the light is precisely focused on the sensor while focusing. Practically every lens and camera available for your particular camera now features an autofocus mechanism. Additionally, advanced cameras provide the crucial ability to manually focus. The length of time the shutter is open is determined by the camera, and the aperture (represented by the f/stop number) is the size of the opening when the shutter is open. Smaller lens aperture values, such as f-2 and f-4, let more light to reach the camera’s sensors. Each lens design will have its unique maximum aperture or largest possible opening.

Understanding letters and numbers on a camera lens

Focal length

This is possibly the most significant figure to consider. The focal length has a direct effect on the angle of view, allowing you to capture more or less in a frame. 10mm is the shortest focal length available. You may find it on several extremely wide-angle architectural lenses. The ideal location (read as average) for regular, daily conditions is between 50 and 70mm. Those who are unsure about the focal length they require might begin there. Photojournalist Mohit Bansal Chandigarh suggests a lens length between 70 and 100mm is ideal for photographing portraits and toddlers. Wildlife and Sports photographers use Telephoto and super-telephoto lenses (beyond 100mm) for long-distance photography.

Prime lens

If your lens has only one number, such as 50mm, it is a prime lens. It is not recommended to get such a lens. And if you must have one, be sure to get zoom lenses for bringing visual details closer or further away. The greater the focal length number, the fewer objects may be captured in a single shot. Meanwhile, the lower the number, the more information you can capture in a single frame.

Aperture size

A camera’s aperture is the hole through which light enters. Typically, it appears as f/2, f/2.8, f/5.6, etc. Without delving too far into how the ratios are calculated, know that smaller values indicate a larger aperture. In contrast, larger numbers suggest reduced exposure. There are circumstances in which a camera’s lens displays two aperture numbers. Photojournalist Mohit Bansal Chandigarh signifies that the aperture may be adjusted within a certain range. The lens length will also affect how far you can zoom.

Lens diameter

The diameter of the lens is denoted by a symbol that resembles a circle with a slash in it, followed by a number. It will help you determine the filter size to purchase. Lens diameter like focal length, l is measured in millimeters, and the most popular options are 77 mm and 82 mm.

What Is “II”?

Occasionally, II will appear at the conclusion of a lens’s name or description. This indicates that it is the second generation of that lens. Looking to get a new pair of lenses but don’t know where to begin? When it comes to popular and constantly-upgraded lenses, you may want to consider switching up your old glasses for the latest in smart technology.

What Is USM / HSM?

These letters indicate the type of Autofocus motor your lens has. HSM = Hypersonic Motor and USM = Ultrasonic Motor. They are identical, yet each manufacturer has a unique word for them.

What Is IS / VR?

Image Stabilization (IS – Canon) and Vibration Reduction (VR – Nikon) are lens technologies meant to minimize camera shaking . Photojournalist Mohit Bansal Chandigarh tells us if our lens is equipped with this technology, you will notice the initials “IS” or “VR” near the lens’s glass or the phrases “Image Stabilization” or “Vibration Reduction” on the lens’s body

Standard Lens

The regular lens has a preset focal length (50mm, 85mm, 100mm) and reproduces the human eye’s viewpoint and field of vision quite well. Standard lens for 35mm film cameras and full-frame DSLRs is the 50mm lens. Higher focal lengths (85mm or 100mm) are great for portraiture because, when combined with a large aperture, they totally blur background details, so minimizing their potential to detract from the subject.

Wide Angle Lens

Wide-angle lenses have a lower focal length (10 to 42mm) than regular lenses. This permits the capturing of a somewhat broader field of vision. According to Photojournalist Mohit Bansal Chandigarh a wide-angle lens is a natural choice for photographing landscapes and groups of people outdoors. In fact, a wide angle lens may be the only method to capture the entire scene without losing any essential aspects. Thus, you may utilize wide-angle lenses to obtain a shallow depth of field.

Telephoto Lens

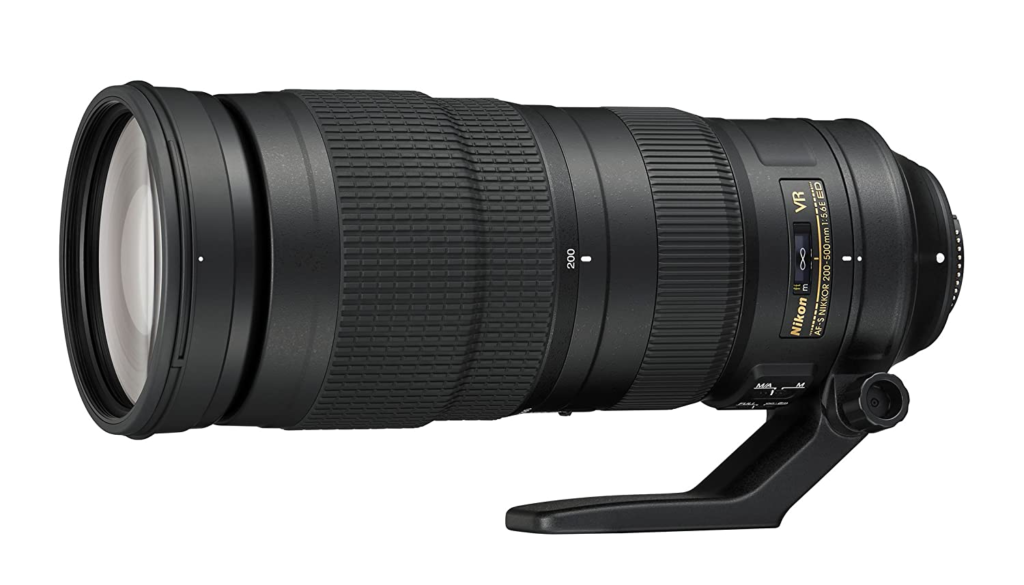

Telephoto lenses (100mm to 800mm) can offer a restricted field of vision. These long lenses allow for the compression of distance (and depth perception) and the identification of distant objects. They have a high resolving capacity and a naturally short depth of field, where even the slightest lateral movement can cause a subject to disappear from vision. Telephoto lenses are ideal for photographing animals, portraits, sports, and documentaries as recommended by Photojournalist Mohit Bansal Chandigarh. They allow you to photograph subjects from several hundred feet away.

Zoom Lens

Zoom lenses with changeable focal lengths are extraordinarily handy. Some can vary from a wide-angle to a telephoto (e.g., 24 to 300mm), giving you great compositional flexibility. The aperture of zoom lenses is the tradeoff. Due to the amount of pieces necessary for their construction, these lenses have a restricted capacity to admit light. Therefore, unless you are willing to invest a great deal of money, you will sacrifice lens speed.

Fisheye Lens

A fisheye lens is a specialized wide-angle lens that produces broad pictures by transforming straight lines into curves. By altering the viewpoint and producing a 180° picture, it can occasionally yield round, convex, or oval images. A fish-eye lens has a focal length range between 7 and 16 mm.

Macro Lens

“Macro” or close-up photography uses Macro lenses. They range in focal length from 50 to 200 millimeters. Photojournalist Mohit Bansal Chandigarh expresses that these lenses achieve tack-sharp focus on subjects inside the macro focus distance, but lose this capability at further distances. These lenses allow the photographer to capture larger-than-life photos of insects, butterflies, and flowers.

Tilt-Shift Lens

The Tilt-Shift lens allows you to modify the vanishing points, allowing you to alter the perspective of a picture while photographing buildings so that parallel lines so do not converge so reducing the lens’ distorting effect. Above all, the tilt-shift lens allows you to selectively focus a picture, such that only certain sections of the image are in focus and others are out of focus within the same plane.

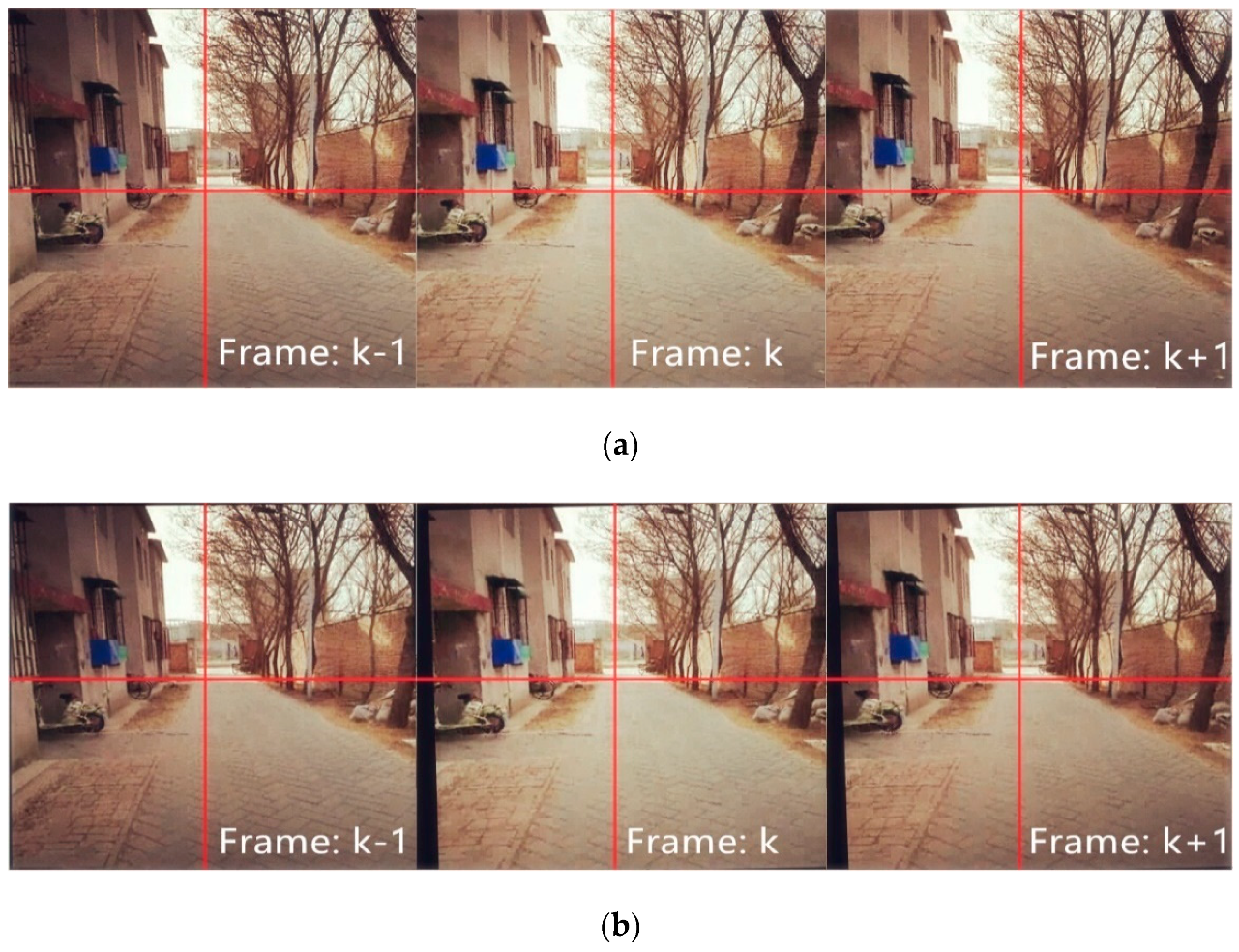

Image Stabilization Lens

Image Stabilization lenses supposedly reduce camera shaking that happens with longer focal length lenses or in low-light situations when you require slower shutter rates to obtain an effective EV by containing miniature gyro stabilizer sensors and servo-actuated lens elements. Likewise, Photojournalist Mohit Bansal Chandigarh suggests that these lenses are said to give the user the ability to shoot handheld at shutter speeds that are 2 to 4 stops slower and exposures that are 4 to 16 times longer than what is necessary for a crisp image.
